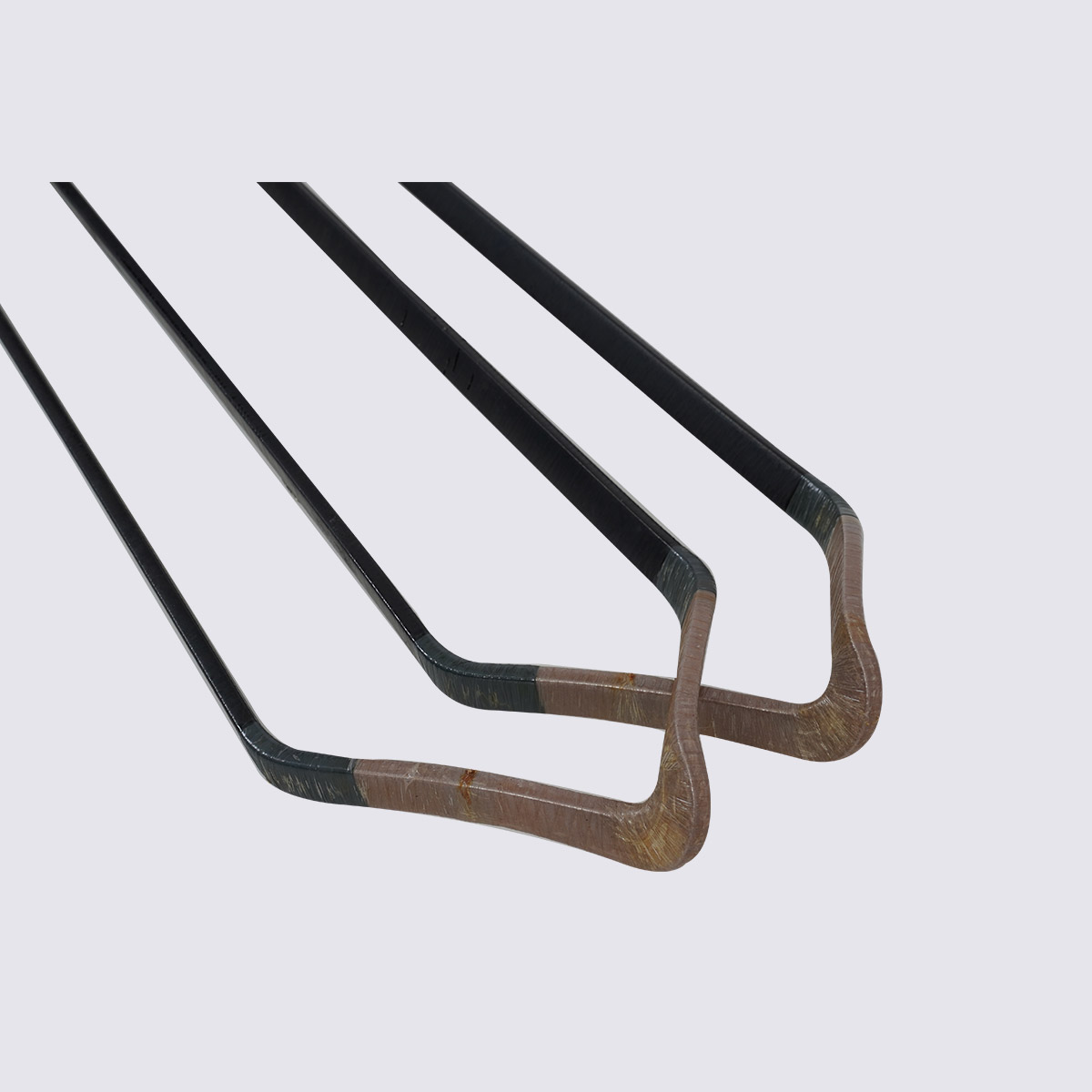

Conductor Insulation(Resin Rich)
DW-CI Resin Rich
- 레진리치 소선 절연 마이카 테이프
- 3 Layer 구조 : PET + Calcined Muscovite Mica + PET
- 기계적 강도, 유연성이 우수
Main Specifications
|
Product |
NA157N |
NA257N |
NA1562N |
NA2562N |
NA1A656N |
|
|
Thickness (After press) |
mm |
0.060±0.01 (0.050) |
0.090±0.02 (0.070) |
0.060±0.02 (0.050) |
0.090±0.02 (0.07) |
0.085±0.02 (0.07) |
|
Mass |
g/m2 |
90±8 |
129±10 |
91±11 |
130±12 |
129±12 |
|
Mica |
g/m2 |
50±5 |
75±8 |
50±5 |
75±8/ |
65±8 |
|
Resin |
g/m2 |
8±3 |
12±3 |
9±3 |
13±3 |
16±3 |
|
Volatile Content |
% |
1.0 > |
1.0 > |
- |
- |
- |
|
Tensile Strength |
N/10mm |
20 < |
20 < |
20 < |
30 < |
40 < |
|
BDV |
kV |
5.0 < |
7.0 < |
5.0 < |
7.0 < |
7.0 < |
|
Flexibility |
N/m |
25 > |
30 > |
35 > |
40 > |
50 > |
